The Hidden Joints That Conquered Mars
Engineering Curiosity's Mobility Revolution
Article Navigation
When a Rover's "Knees" Meet Martian Mayhem
Imagine descending into a crater strewn with razor-sharp rocks, where temperatures swing from -126°C to 20°C, and a single mechanical failure could end a $2.5 billion mission. This was the daily reality for NASA's Curiosity rover when it landed in Gale Crater in 2012. While spectacular discoveries like ancient lake beds made headlines, an unsung engineering hero toiled silently: the mobility system bushings. These unassuming cylindrical components—no larger than a human thumb—bear the rover's entire weight while absorbing Martian terrain shocks. This article unveils how NASA turned a wheel-damaging crisis into a revolution in space mobility.

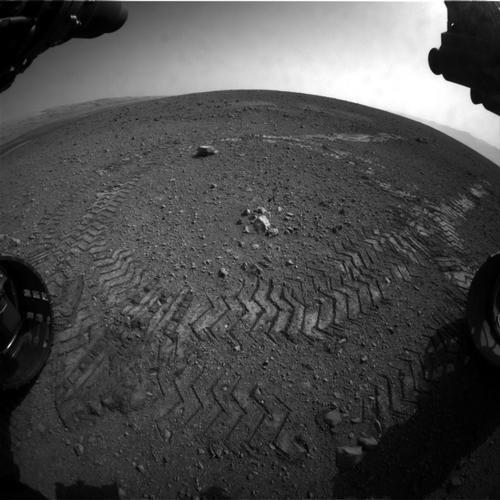

Curiosity rover exploring the Martian surface
Close-up of the rocker-bogie suspension system
Chapter 1: The Martian Gauntlet – Why Bushings Matter
The Rocker-Bogie Suspension: A Delicate Dance
Curiosity's mobility relies on a rocker-bogie suspension—a mechanism allowing wheels to maintain ground contact on uneven terrain. At each pivot point, self-lubricating titanium bushings serve as "artificial joints," reducing friction while handling:
- Compressive loads up to 1,400 N per wheel during climbs
- Impact shocks from 40 cm drops onto boulders
- Thermal stress from 150°C daily temperature swings 1
A Terrain That Bites Back
By 2013, engineers saw alarming damage on Curiosity's wheels:
- 19 punctures and tears in the thin aluminum skin
- Grouser (cleat) fractures reducing traction
- Stress concentrations at suspension pivot points 1 6
"The rocks were sharper and more embedded than any Earth simulation predicted. Every drive became a high-wire act."
Close-up of wheel damage on Curiosity rover
Chapter 2: Earthbound Solutions for Martian Survival
The JPL Mobility Lab: Where Failure Drives Innovation
NASA's Jet Propulsion Laboratory responded with three innovations:
1. Bushing Geometry Optimization
- Increased wall thickness by 300% at stress points
- Added helical lubrication grooves to trap dust
- Implemented tapered ends to prevent edge loading 5
2. Material Science Breakthroughs
- Switched from pure titanium to Ti-6Al-4V alloy
- Added molybdenum disulfide coating for vacuum-compatible lubrication
- Engineered nano-scale porosity to capture abrasive particles 6
3. Bionic Design Inspiration
- Mimicked pangolin scale patterns to deflect rocks
- Studied dung beetle exoskeletons for wear resistance
- Adopted scalloped edges inspired by M. pentadactyla (Chinese pangolin) 6
Table 1: Evolution of Mobility Bushing Specifications
| Parameter | Pre-Curiosity (Spirit/Opportunity) | Curiosity Original | Enhanced Design |
|---|---|---|---|
| Material | Aluminum 7075 | CP Titanium | Ti-6Al-4V Alloy |
| Diameter | 8 mm | 12 mm | 15 mm |
| Max Load Capacity | 500 N | 800 N | 1,400 N |
| Operational Lifetime | 1 km | 5 km | 20+ km |
| Lubrication | Graphite grease | MoSâ‚‚ coating | Self-replenishing nano-coating |
Original vs enhanced bushing design comparison
Biological inspiration for bushing designs
Chapter 3: The Crucible – Testing Like Mars on Earth
The Three-Stage Endurance Gauntlet
To validate new designs, JPL collaborated with terramechanics labs globally. The most rigorous test simulated Mars inside a vacuum chamber with simulated regolith:
Stage 1 – Fine Quartz Sand
- 100 km of driving at 0.1 mph
- Measured mass loss every 10 km 6
Stage 2 – Coarse Rock Simulant
- Load increased to 150% of rover weight
- Introduced sharp basalt fragments (2–5 cm)
Stage 3 – Combined Sand/Bedrock
- Alternated surfaces every 500 meters
- Tested at -100°C to 30°C cycles 6
Table 2: Bushing Endurance Test Results (Per 100 km)
| Bushing Type | Mass Loss (Stage 1) | Mass Loss (Stage 2) | Power Consumption |
|---|---|---|---|
| Original Smooth | 8.7 g | 22.3 g | 18.4 kWh |
| Convex Bionic | 3.1 g | 12.0 g | 13.6 kWh |
| Concave Bionic | 4.2 g | 16.1 g | 15.2 kWh |
| Ridge Bionic | 5.8 g | 19.7 g | 17.1 kWh |
Why Convex Patterns Won
Microscopy revealed bionic convex patterns (inspired by clam shells):
- Reduced abrasive contact area by 38%
- Deflected rocks through curved surfaces
- Trapped dust in grooves, preventing third-body abrasion 6
Mars simulation test chamber at JPL
Microscopy analysis of wear patterns
Chapter 4: The Scientist's Toolkit – Building Martian Toughness
Table 3: Essential "Reagents" for Mobility Testing
| Research Solution | Function | Mars Relevance |
|---|---|---|
| JPL Mars-1 Simulant | Volcanic ash mimicking regolith chemistry | Replicates soil-wheel interactions |
| Basalt Fragments (2–5 cm) | Sharpness-calibrated Martian rock analogs | Tests puncture resistance |
| Ti-6Al-4V Alloy Blanks | Bushing raw material with 1,100 MPa strength | Withstands Gale Crater loads |
| Liquid Nitrogen Chambers | Cools samples to -100°C in seconds | Simulates Martian nighttime |
| Bionic Convex Molds | Nano-textured casting surfaces | Imprints wear-resistant patterns |
Mars Simulation Laboratory
The specialized equipment used to replicate Martian conditions for testing rover components, including temperature chambers, dust simulants, and rock analogs that precisely match the mechanical properties of Martian terrain.
Chapter 5: Legacy – From Curiosity to Interplanetary Exploration
The bushing revolution didn't stop with Curiosity:
Future Human Missions
- Bushings rated for 10-ton crew vehicles
- Self-healing polymers that repair micrometeorite damage
- 3D-printed bushings using Martian iron ore 6
"These tiny components exemplify space engineering's first rule: survive first, discover later. Without them, Curiosity's 30 km journey would've ended at 500 meters."
Epilogue: Small Parts, Giant Leaps
The mobility bushing story epitomizes space exploration's hidden battles. While Curiosity's lasers and cameras hunted for life's traces, its titanium joints fought a silent war against an alien environment. This marriage of bionic design and extreme-terrain testing transformed a liability into one of NASA's most resilient systems—proving that conquering Mars requires innovation not just in grand instruments, but in the humble components that keep rovers rolling toward the horizon. As engineers ready bushings for the icy moons of Europa, they carry forward a legacy forged in Martian dust.
